2016 Trimaran Tribrid RD 24

Indonesia

£455,698

!** THE PRICE HAS JUST HAD A HUGE REDUCTION **!

 - FULL PLANS & SPEC'S NOW AVAILABLE ON REQUEST

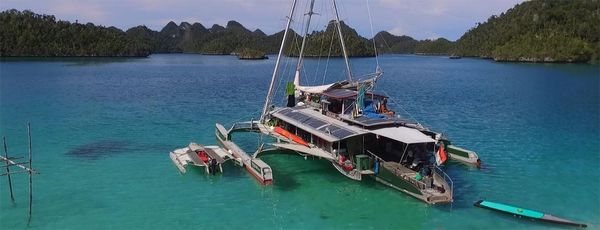

The Mithral Marine Tribrid RD 24 'Bigkanu' is unlike any other boat, designed to be super inexpensive to run and maintain, with tiny fuel use, built with a robust Australian/Kiwi/Indonesian engineered, all alloy hull and cabin. The focus is on self-sufficiency, performance and long distance passage making at low cost for commercial purposes and holiday adventures

Her Lateen rig and efficient 110hp Yanmar engine give her an incredible range of 2000 nautical miles at very low cost. The rig is easy to handle, she self tacks and cruises at 10 knots with stability and ease whilst fully loaded.

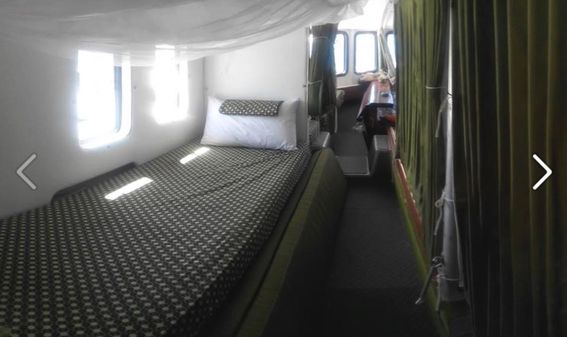

Accommodation comprises 12 guest bunks and 4 crew bunks with a full commercial kitchen

We now welcome all serious enquiries and viewing requests.

Basic Boat Info

Boat Name: Bigkanu
Make: Trimaran
Model: Tribrid RD 24
Year: 2016
Condition: Used
Category: Sail
Construction: Aluminum
Range: 3,704 km

Dimensions

Length: 75'6 ft / 23.00 m
Length Overall: 78'5 ft / 23.90 m
Beam: 39'4 ft / 12.00 m
Max Draft: 2'7 ft / 0.80 m
Min Draft: 2'7 ft / 0.80 m
Dry Weight: 15,000 kg
Single Berths: 12

Engines / Speed

Engines: 1
  • Make: Yanmar
  • Fuel: Diesel
  • Engine Power: 110hp
  • Type: Inboard
  • Year: 2016
  • Engine Hours: 1600
Cruising Speed: 11 kn

Tanks

Fuel Tanks: 1
Fuel Tank Capacity: 1,500 L
Water Tanks: 1
Water Tank Capacity: 1,500 L

Other

Total Liferaft Capacity: 20
Boat Class: Multi-Hulls, Trimaran

Contact

Henry Mackenzie-Green
Welcome to Overseas Yachts which is a small professional dedicated International team that specialises in brokering, purchasing & renovating used yachts from anywhere on the globe.. We do indeed have a small selection of excellent used yachts for sale which we hope are of interest. We are also regularly legally assisting our client/s with their next dream purchase and/or new renovation project. This is all made possible with our very experienced UK International brokering, quoting, purchasing and marine trade team/s... We hope this briefly introduces us and we now of course welcome receiving all new inquiries & hearing from all our previous clients to help start or indeed keep the amazing moments coming 'Over The Seas', which are now of course even more important & precious post the global C19 pandemic!....
Overseas Yachts

Office

Overseas Yachts
Lower Farm Cottage
Beaminster, Dorset, GB, DT8 3JA
Tel:(+44) 7766086542 - (Please use Whats App)
Disclaimer
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.


FULL INVENTORY AND INFORMATION

General Information

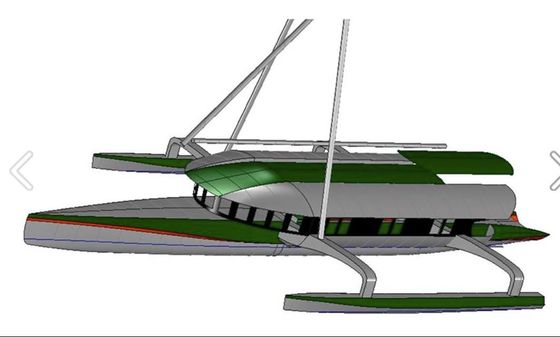

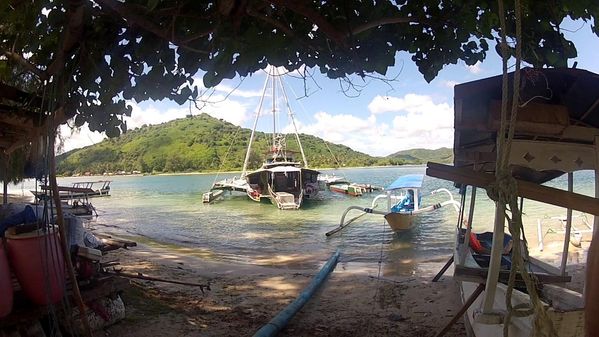

BigKanu is a Lateen rigged motor-sailor with rig suspended in an A frame for powerful sail boost power. She is designed to make long distance headway as a motor sailor with small fuel use. She is robust and stable due to her alloy build and low center of gravity. Beaching is possible even on rocky ground as its built tough underneath for this very purpose.

Using her own truck wheel trolleys she can be chain blocked up the beach for maintenance to avoid the cost of slipping a boat with a 12m beam.



Engine

110hp Yanmar giving 10-11 knots with low fuel use. Now about 1600 hours use (July 2019). Cruising speed under engine 8 knots



Tanks

1500 litre water, with roof drain refill.

1500 litre diesel giving a range of 2000Nm,

Petrol reservoir tank for tender



Inventory

‘Bigkanu’ is equipped with:

  • Solar power – 5kW for all electrical needs.
  • Glass bottom viewing windows.
  • Bow thruster
  • SIMRAD radar, plotter AIS, autopilot - full suite instrumentation.

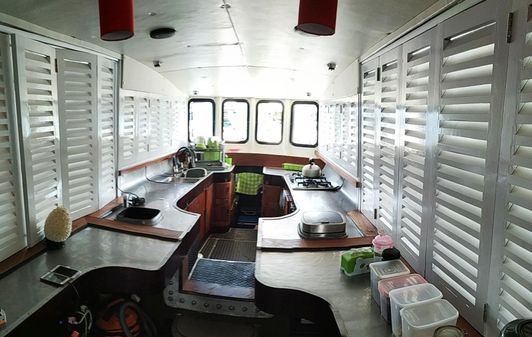

  • Full commercial galley including fridges, washing machines and water makers all work off solar power
  • Watermaker 100l/hr. - never used (July 2019)
  • 400l fridge freezer, all 240 run from solar and inverter, plus small portable genset for power tools,
  • Twin , drop down , 6m alloy trimaran tenders with 15Hp Yamaha engines
  • 20 pax Liferaft.
  • Full workshop of tools.
  • A total of 24 opening windows, each 60cm by 30cm.
UPDATED SPECIFICATION FOR ‘BIGKANU”

HULL ALLOY SPEC.

Under body:  6mm marine grade aluminium

Top sides and cabins: 5mm marine grade aluminium

Frames: Spaced at 800mm

Keel: 200mm plate



HATCHES


Engine room: 1100 by 900 flush alloy hatch


Watermaker: 750mm by 1100 flush alloy


Battery room: 1100mm by 700 flush alloy


Steerage: 500 by 500 flush alloy


Under galley storage: 700mm by 900mm


Forward rope locker: 700 by 800 flush alloy


Forward cargo load 1500mm by 900mm


Cabin ventilation:  24 hatch windows 400 by 600 Alloy and glass

Underwater windows:   Twin 400mm diameter tempered glass view ports over rudder



RIG

Lateen rig suspended by A- Frame.  85m2



STEERING

Hydraulic:   Oversize Ram and deep swing, long blade rudder

Emergency Tiller:  Stainless box keys shaft, braces via a deck through hull entry hole

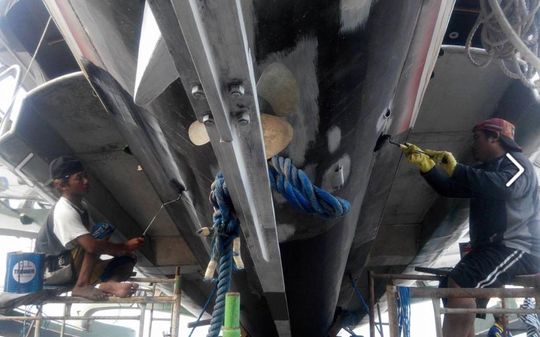

Rudder:  All stainless welded blade rudder with extension tip, on a 75mm solid stainless rudder shaft fully supported and protected in a keel pintal braced by solid T section alloy 25mm plate, 12cm in a "T" bar configuration, running full length of the keel, plus a 50cm extension protection bar under the rudder blade.

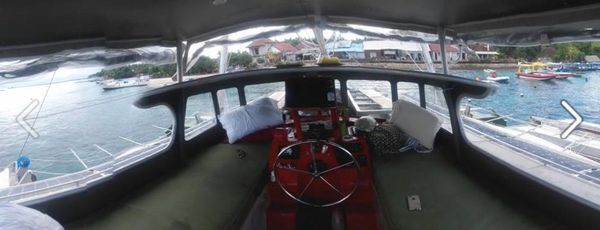

Steering Wheel:  60cm Stainless 5 spoke and hydraulic pump with oversized 25mm hydraulic lines.



ENGINE

Main motor:  Yanmar 4JH4S-HTFE 110Hp 4 cylinder turbo intercooled

Gearbox: ZF ZH30MS direct drive

Alternator: Twin 80A

Propeller: Austral 4 blade computer cut Australian prop.



ELECTRONICS

Chartplotter:   Simrad NSS 12 Bundle 4G
IS40 Integrated chart/radar/depth/tide/heading/autopilot controller

Radar:  Simrad Instant response, low power, high definition patent systems

Autopilot:   Simrad. Hydraulic powered, screen controlled, with 20m hand held extension plus wifi monitRred to handphone

AIS: Simrad NAIS400 assisted by Lowrance GPS integrated in VHF arial and chart plotter

VHF
: Simrad HS35 DSC VHF +  RS35 VHF deck portable hand set

Wind sensor : Simrad Triton showing Wind angle, apparent wind, wind speed.


Depth Sounder:  Simrad SS60 600W. THRU HULL 50/200 20 degree, integrates into chart-plotter.



SOLAR POWER

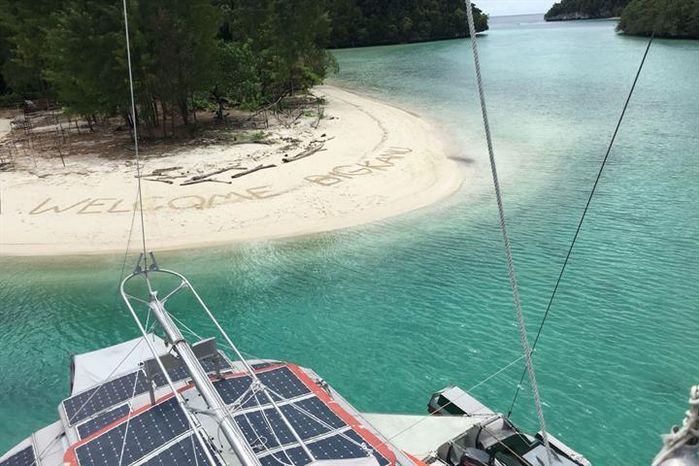

Solar Cells:  Sanyfeida HK  28 X  180Wflexible panels = 5040watts of solar power

Controller Regulators – Tristar TS 60  X7

Batteries:  7 X 200 Ah domestic + starter

Inverters:   Dual Inverters at 2000w plus 3000watt backup



WATER

Potable: 150 liters in stainless tanks with Jabsco pump and galley and bathroom tap

Salt water:  240 v deck wash with bow and stern outlets
.  12v Jabsco for toilet and kitchen outlets


Tank water:  1400l in epoxy lined main tank

Roof water:  Roof fully plumbed to fill rain water @500l/hour in heavy rain

Water-maker:  1000w 100liter per hour desalinator



MOORING

Anchor:  90m primary 8mm chain and 40kg Bruce, plus 80m of rope, plus back up anchor in a Bruce style with 40m of chain and 60m of rope
75Kg thrust 12volt. 4000watts

Windlass:  Quick Hector 1012D anchor windlass

Bow Thruster:  Quick - 75Kg thrust 12volt. 4000watts



DOMESTIC EQUIPMENT

Main fridge freezer: Samsung RTH52515A

Freezer: Polytrom 100 liters

Cooking: Oven plus 5 burner hob

TV:
  32”+ 27” Samsung TVs

Washing Machine: Samsung Eco Bubble front load 6.5kg



SAFETY

EPRIB: GME 3EFA 4A 7AOBF 81FEO

Life raft: 20 person

Life jackets: 20 units

Fire extinguishers:  X5 – CO2 and powder



TENDERS

2 X Trimaran, unsinkable tenders with 15Hp Yamaha 2 stroke and davits

4 X 4.2m standup paddle boards



MORE A & Q's:

As her owner I designed the boat and it was built by New, Zealand builders called Mithral Marine in Surabaya.

The Lateen motor/sailing mast is low, in height to reduce the overturning motion. The yacht has, a gross charter income of between $150, 000 to $200, 000 USD for all those interested in running a business while living the dream!?.
